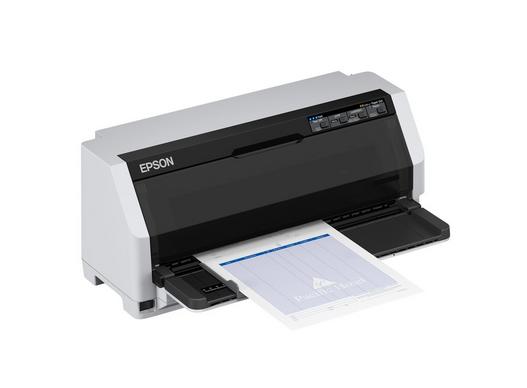

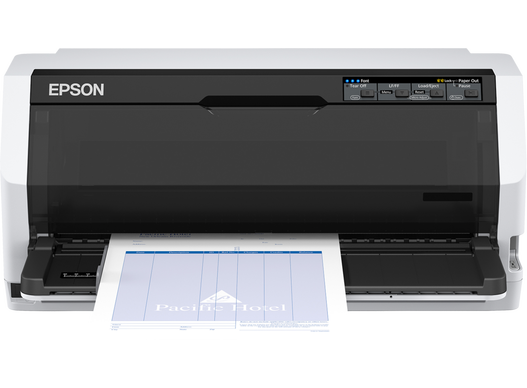

Epson LQ-690II Dot Matrix Printer

Description

EPSON LQ-690II Dot Matrix Printer – High-Performance Printing Solution

Overview:
The EPSON LQ-690II Dot Matrix Printer is engineered for outstanding reliability and efficiency, making it the perfect choice for businesses that require fast and high-quality printing.

Key Features:

– Impressive Speed: Achieve remarkable print speeds of up to 487 characters per second (cps) at 10 characters per inch (cpi), allowing you to meet tight deadlines effortlessly.
– High-Quality Output: The printer boasts a 106-column capacity coupled with a 24-pin print head, ensuring superior print quality for all your documents.
– Durability You Can Trust: With a print head life expectancy of 400 million characters and a mean time between failures (MTBF) of 20,000 hours, the LQ-690II is built to last.
– Sleek Modern Design: Its stylish black and white casing integrates seamlessly into any office or work environment.

Printing Specifications:
– Maximum Print Speed: 487 cps
– Maximum Printing Width: 106 columns
– Draft Speed: 366 cps
– High Quality (LQ) Speed: 121 cps
– Maximum Number of Copies: 7
– Built-in Barcodes: Supports various barcode formats including CODABAR, Code 39, Code-128, and UPC-A among others.

Character Sets Supported:
Compatible with multiple character sets such as ISO 8859-15, PC437, PC850, and more, enhancing its versatility across different applications.

Paper Handling:
– Manual and Pull Tractor Feed Options
– Compatible Media Types: Envelopes, Labels, Plain Paper, and Continuous Rolls
– Thickness Range:
– Continuous Paper: 0.065 – 0.49 mm
– Labels: 0.16 – 0.19 mm
– Multi-part Paper: 0.12 – 0.49 mm
– Single Sheets: 0.065 – 0.15 mm

Technical Specifications:
– Color: Black and White
– Buffer Size: 128 KB
– Noise Level: Operating at a sound pressure level of 59 dB during printing
– Country of Origin: Indonesia

Connectivity Options:
– Standard Interfaces: Parallel, USB 2.0 for easy connectivity with various systems.

Power Efficiency:
– Typical Power Consumption: 38 W
– Standby Power Consumption: 3 W

Operational Conditions:
– Operating Temperature Range: 5 – 35 °C
– Compatible with Windows operating systems and includes bundled software like Epson Status Monitor.

Dimensions:
– Width: 480 mm
– Depth: 301 mm
– Height: 211 mm
– Weight: 6.8 kg

The EPSON LQ-690II Dot Matrix Printer is an excellent choice for businesses looking for a reliable, high-speed, and high-quality printing solution. Upgrade your printing capabilities today!
